"TS" RELAY SERIES
SOLID STATE MOTOR STARTING RELAY/SWITCH
SOLID STATE MOTOR STARTING RELAY/SWITCH
RELAY DIMENSIONS
1 1/2" HIGH
| PRODUCT INFORMATION SHEET |
| FOR SINGLE PHASE CAPACITOR START AND SPLIT PHASE MOTORS |
| The TS Relay line is a general purpose current sensitive adjustable motor starting relay |
| engineered for High Torque Applications. |
| The Lewus TS Relay Series | |||||||
|
·
|
Versatile for a wide range of motor applications | ||||||
| Bowling pin-setters | |||||||
| AMF PART NUMBER: ( 610-309-042 ) | |||||||
| CONTACT AMF BOWLING PRODUCTS AT: 1-800-342-5263 | |||||||
| OR CONTACT VANTAGE BOWLING CO. AT: 1-800-255-7401 | |||||||
| Pumps | |||||||
| Conveyors | |||||||
| Air compressors | |||||||
| Machinery | |||||||
| And all other applications that require instant start. | |||||||
|
·
|
Consists of a primary and secondary coil with specialized triac/diode circuitry that ensures a reliable effective operation. | ||||||
|
·
|
Replaces the centrifugal switch prolonging the life of the motor due to no moving parts. | ||||||
|
·
|
Provides instant reversibility. | ||||||
|
·
|
Has frequent starting capability. | ||||||
|
·
|
Provides for easy installation. | ||||||
|
·
|
Small in size. | ||||||
|
·
|
Motor voltage is 120/240 Volts. | ||||||
|
Model No.
|
Motor H.P.
Rating Max.
|
SurgeStarting
Current Max.
|
Capacitor Size
in MFD/Voltage
|
Running
Amperes
|
|

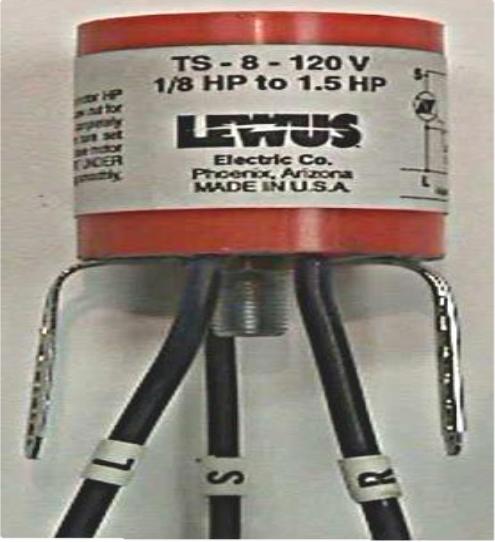

TS-8-120V.
|
1/8 - 1.5 H.P.
|
16 Amps.
|
400 MFD/120V.
|
8 Amps.
|
|
TS-15-120V.
|
1/4 - 2 H.P.
|
30 Amps.
|
700 MFD/120V.
|
16 Amps.
|
|
TS-30-120V.
|
1/3 – 3 H.P.
|
40 Amps.
|
800 MFD/120V.
|
20 Amps.
|
|
TS-40-120V.
|
1/2 – 5 H.P.
|
50 Amps.
|
1000 MFD/120V.
|
24 Amps.
|
ORDER TODAY !
For More Information
Contact
JIM LEWUS
At
| LEWUS ELECTRIC COMPANY, INC. | ||
| 1303 Red Baron Road | ||
| Payson, Arizona 85541 | ||
| Phone (928)468-6320 |
Fax (928)468-6321
|
|
| Please call for our E-mail Address | ||
FOR OUR DISTRIBUTOR
CONTACT
EIS/HOLDEN
1-800-328-4662
Now accepting Visa and MasterCard
|
 |
 |
